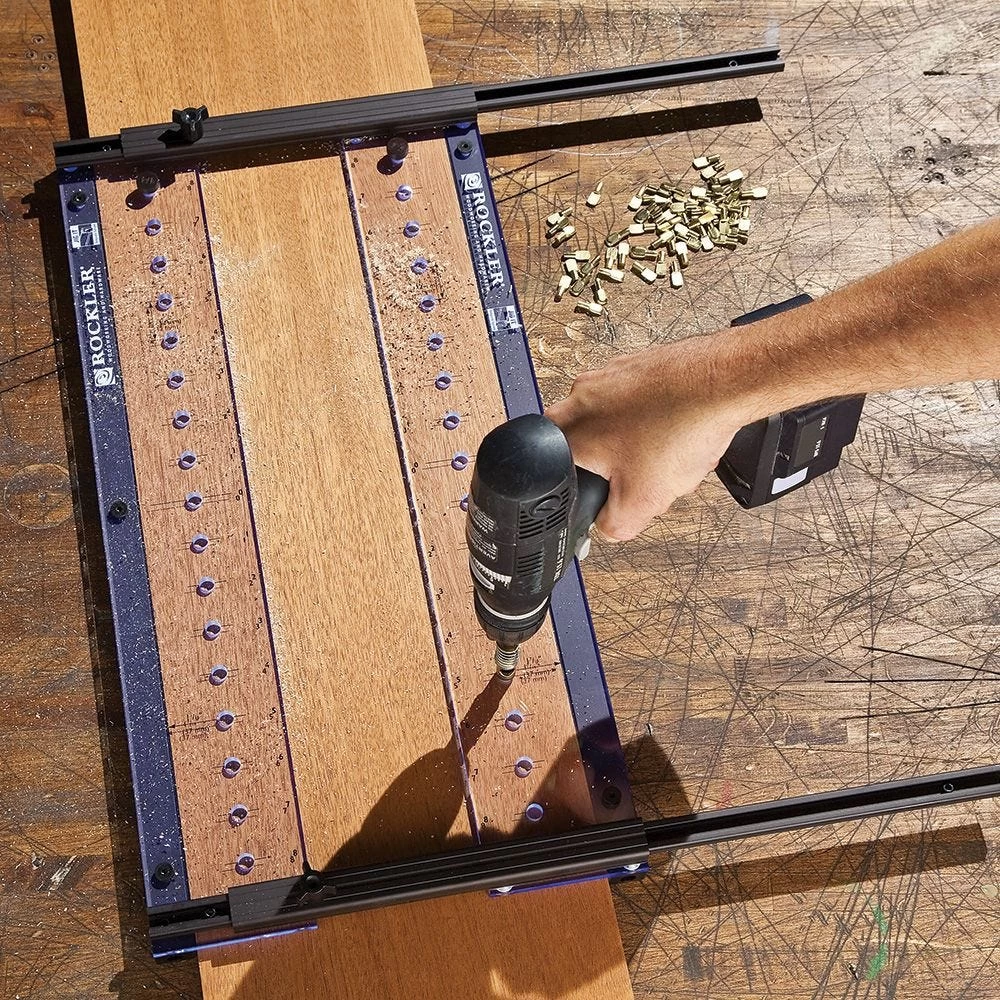

Rockler Pro Shelf Drilling Jig

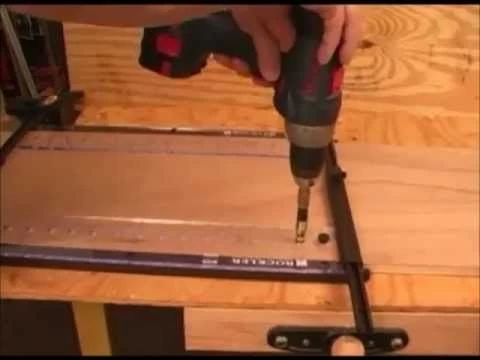

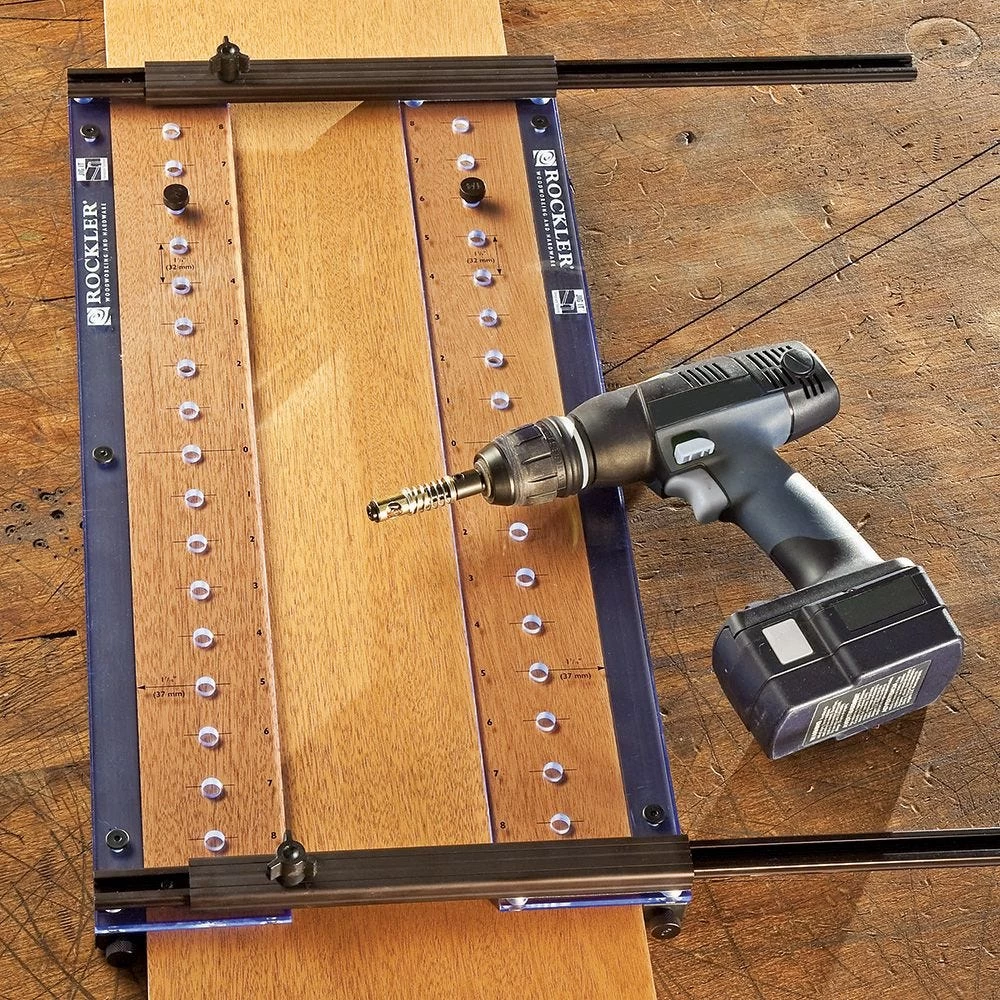

Just lay the jig on your stock, tighten the two horizontal tracking knobs and start drilling error-free rows.

Features:

• Guarantees each row is perfectly in line
• Removes the chance of misaligned shelf pin holes, which means no wobbly shelves
• Spaces each hole exactly 37mm from the edge of your stock
• Jig is easy to set up and easy to adjust for multiple rows
• Rows are spaced exactly 1-1/4″ (32mm) apart
• Pin holes are set back exactly 1-7/16″ (37mm) from each edge
• 32mm spacing and 37mm setback are fully compatible with the Euro hinge system

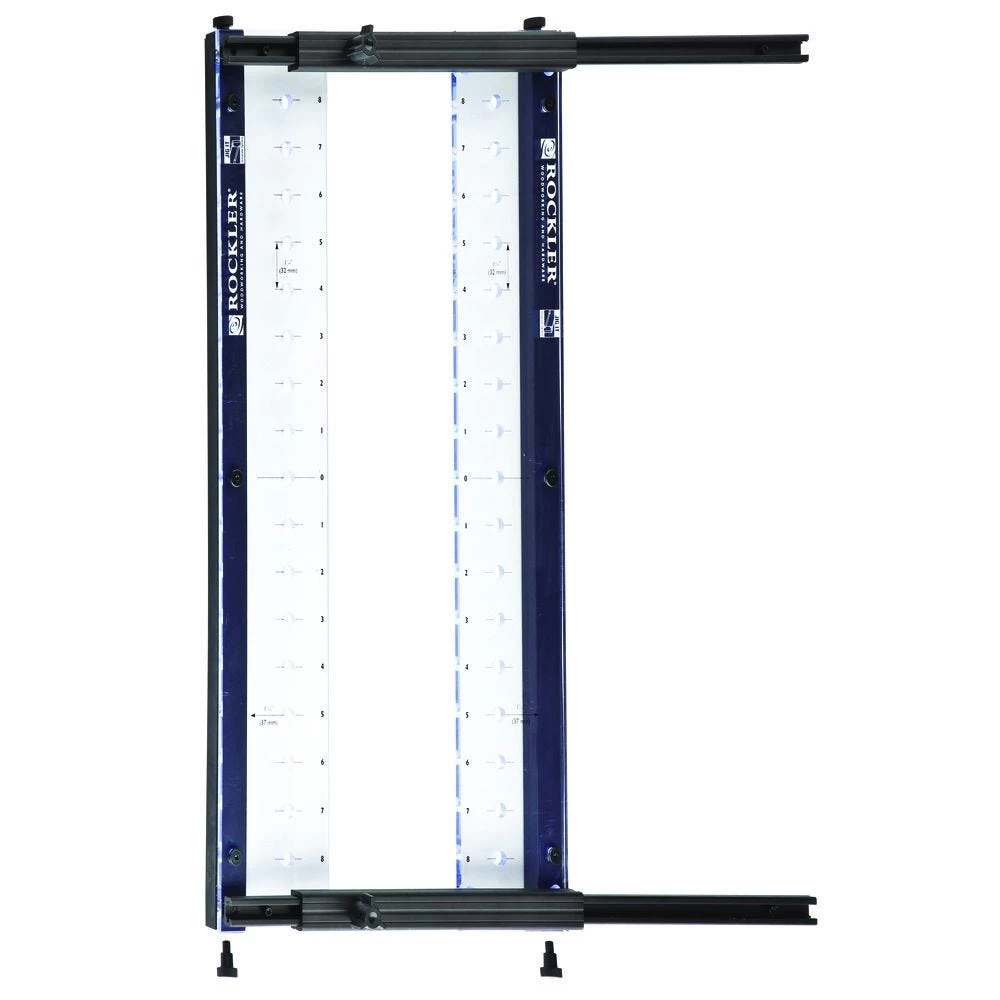

• 24″ long twin template tracks are joined by rigid rails that lock in place for error-free drilling
• Drill two rows with one jig to save time and ensure accuracy
• Locking 3-star tracking knobs allow for adjustments and ensure the jig stays firmly in place

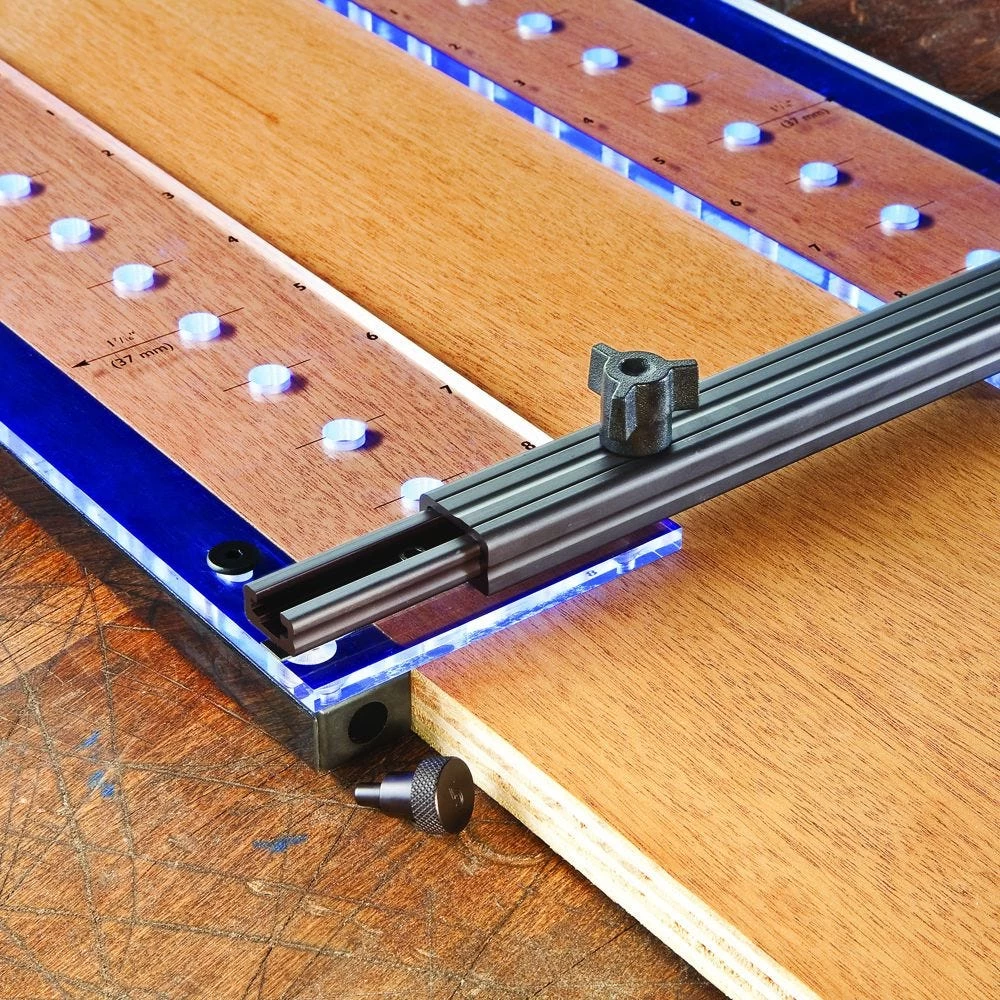

• Reversible guide rails have a smooth aluminum surface on one side and a rubber fence on the other for better gripping power
• Includes two 5mm and two 1/4″ indexing pins that eliminate the need for clamps and allow you to extend long rows of holes indefinitely
• Included indexing pins store conveniently in the ends of each guide rail when not in use
• Drilling template is made of thick acrylic for durability
• Designed for un-assembled cabinet components from 8-1/4″W to 25-1/4″W
