Name: 75-lb. Comfort-Close Over-Travel Drawer Slides - Centerline® 757CC (14" To 22")
SKU: CM9JA 24071
Availability: InStock

New

75-lb. Comfort-Close Over-Travel Drawer Slides - Centerline® 757CC (14" To 22")

75-lb. Comfort-Close Over-Travel Drawer Slides - Centerline® 757CC (14" To 22") - Image 2

75-lb. Comfort-Close Over-Travel Drawer Slides - Centerline® 757CC (14" To 22") - Image 3

75-lb. Comfort-Close Over-Travel Drawer Slides - Centerline® 757CC (14" To 22") - Image 4

75-lb. Comfort-Close Over-Travel Drawer Slides - Centerline® 757CC (14" To 22") - Image 5

75-lb. Comfort-Close Over-Travel Drawer Slides - Centerline® 757CC (14" To 22") - Image 6

Original price was: $26.99.Current price is: $18.89.

SKU: CM9JA 24071 Categories: Drawer Slides, Hardware

Quality You Can Count On
Buy with Peace of Mind
Get Quality, Get More
Service with a smile, always online.

Description
Reviews (0)

Designed for the smoothest possible closing action! A spring loaded, pressure-controlled mechanism automatically engages to ease the drawer quietly shut during the final 1-1/2″ of travel. These over travel slides also feature convenient lever disconnect and impeccable construction. Back brackets (#47585, sold separately) are required for mounting to face frame cabinets.

Note: These slides have very tight tolerances and require that the drawer box be square and the slides be parallel. If this attention to detail is not followed you may find them binding on open or close cycle.


Brand	Rockler Centerline®
Weight	3.700000

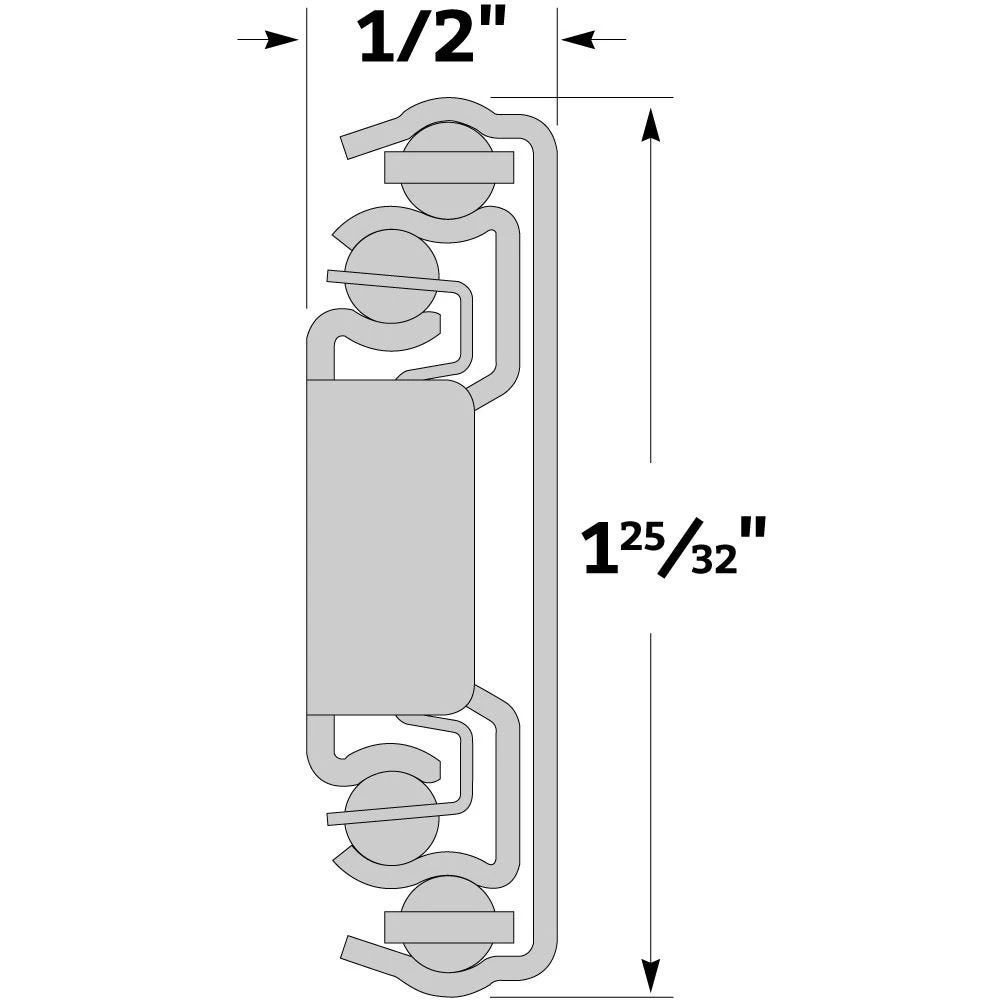

Tech Spec	Motion: Soft-Closing Motion Disconnect: Lever Handed: Non-handed Maximum Drawer Slide Thickness: No Limit Required Side Clearance (Each Side): 1/2″ Required Drawer Bottom Recess: None Face-Frame or Frameless Cabinets: Both Minimum Face-Frame Cabinet Depth With Rear Brackets: Length of slide RoHS compliant, meeting the newest European and US ecological standards Made from high grade steel with an attractive zinc finish 75-pound load rating Smooth, ball-bearing sliding action Easy-close mechanism also prevents accidental rollout Tested to 50,000 cycles and backed by Rockler’s limited lifetime warranty. 1” of travel past full extension Illustration depicts 75 pound slide weight rating with over travel slide extension. Illustration depicts hinge 1/2″ width and 1 25/32″ length.
Slide Weight Rating	75 lbs
Slide Extension	Over Travel
